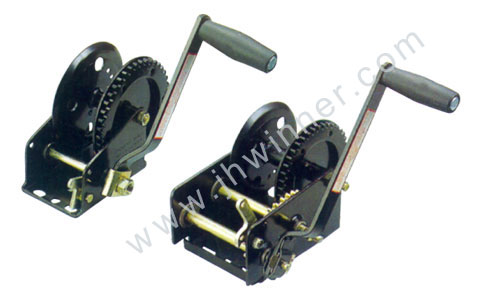

STANDARD HAND WINCH

詳細(xì)說(shuō)明

Stork No	Modle	Capacity	Gear ratio	A(mm）	B（mm)	C(mm)	D(mm）	E（mm)	F(mm)	G(mm)
500101000	W06-506	600lbs/270kgs	3.2:1	95	104	89	50	230	235	10
500102000	W06-508	800lbs/385kgs	3.2:1	95	104	89	50	230	235	11
500103000	W06-510	1000lbs/450kgs	4:1	136	152	89	53	230	235	9.5
500104000	W06-512	1200lbs/545kgs	4:1	136	152	89	53	230	235	10
500105000	W06-514	1400lbs/636kgs	4:1	136	152	89	53	230	235	11
500106000	W06-516	1600lbs/727kgs	4:1	136	152	89	53	230	235	12
500107000	W06-506A	600lbs/270kgs	3.1:1	124	120	90	50	240	220	10
500108000	W06-508A	800lbs/385kgs	3.1:1	124	120	90	50	240	220	11
500109000	W06-510A	1000lbs/450kgs	4:1	140	140	90	50	240	220	12
500110000	W06-512A	1200lbs/545kgs	4:1	140	152	90	52	225	230	9.5
500111000	W06-514A	1400lbs/636kgs	4:1	140	143	90	52	240	230	10
500112000	W06-516A	1600lbs/727kgs	5.1:1	160	182	90	52	250	280	10
500113000	W06-518A	1800lbs/815kgs	5.1:1	160	182	90	52	250	280	11

* Solid gear construction. * Black spraying plastics or zinc plated finish. * Dual speed design.
